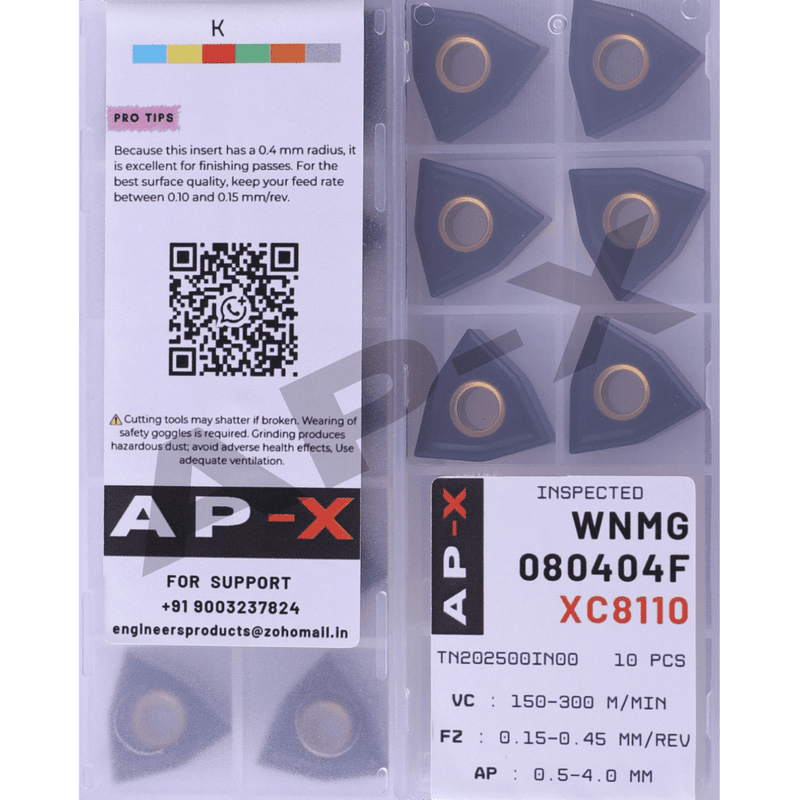

WNMG080404F XC8110

The WNMG080404F XC8110 is an 80° Trigon insert that offers exceptional economy with 6 cutting edges (3 per side). Featuring the XC8110 grade, this insert is engineered to handle the extremely abrasive nature of cast iron, providing high wear resistance and thermal stability during continuous machining.

Key Features:

• Grade XC8110: A premium CVD-coated grade optimized for Cast Iron (K). It features a thick, hard alumina coating that acts as a heat shield, preventing the carbide substrate from degrading under the high temperatures and abrasive friction typical of grey and ductile iron.

• 0.4mm Nose Radius: Precision-engineered for finishing and semi-finishing tasks. The smaller radius reduces cutting forces and is ideal for achieving superior surface finishes and maintaining tight dimensional tolerances.

• 6-Edge Economy: The Trigon shape provides 50% more cutting edges than a standard CNMG insert, significantly reducing the cost-per-edge in high-volume production.

• Excellent Stability: The 80° inclusive angle provides a more robust edge than a triangular insert, allowing for higher feed rates and better resistance to mechanical shock.

Best For:

• Finishing and semi-finishing of Grey Cast Iron (GG) and Ductile/Nodular Iron (GGG).

• High-volume manufacturing where cost-per-part is a primary KPI.

• Compatible with standard DWLNR / PWLNR / MWLNR style tool holders.⁴
