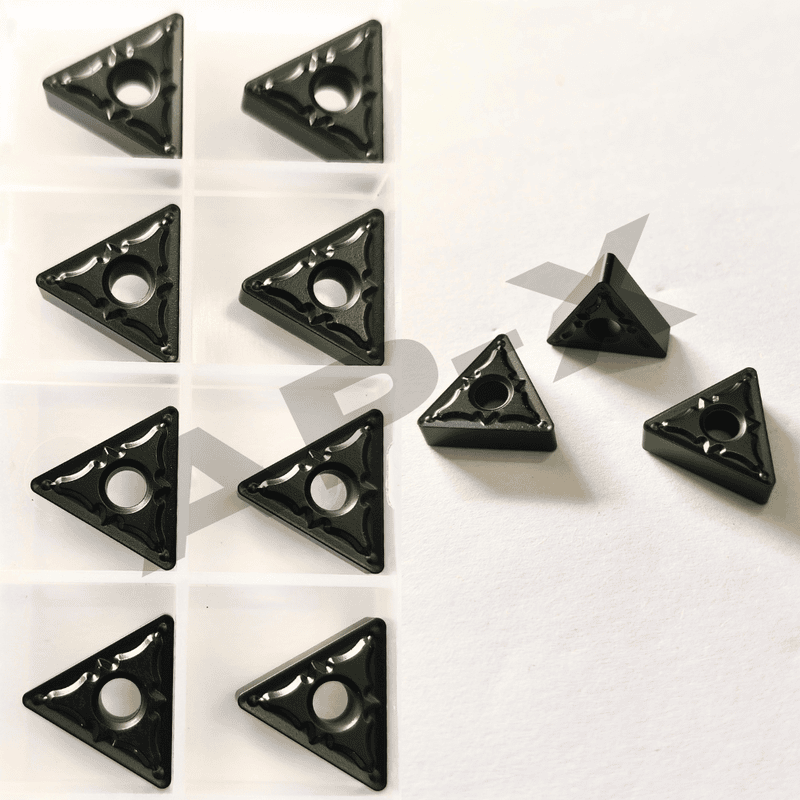

TNMG160408M XP6110

The TNMG160408M XP6110 provides the maximum economic advantage with 6 cutting edges per insert.¹ Paired with the XP6110 grade, this insert is the "workhorse" for CNC shops machining Carbon Steels and Alloy Steels. It is designed to balance long tool life with high productivity in semi-roughing to finishing applications.

Key Features:

• Grade XP6110: An advanced PVD-coated grade featuring a high-toughness carbide substrate. The coating is specifically engineered to resist thermal shock and flaking, making it excellent for continuous cuts and light interrupted cuts in Steel (P).

• Chipbreaker: This geometry is designed for stability and versatility. It features a wide chip-breaking range that prevents "bird-nesting" (long stringy chips) even when the depth of cut or feed rate varies during the cycle.

• 0.8mm Nose Radius: Provides a high-strength cutting edge that is resistant to chipping. This radius is the industry standard for general turning, offering a perfect blend of durability and a high-quality surface finish.

• Double-Sided Triangle: With three edges on the top and three on the bottom, this negative geometry insert offers a lower cost-per-edge than rhombic (CNMG) or square (SNMG) alternatives.

Best For:

• Medium-duty turning of Carbon Steels (1018, 1045) and Alloy Steels (4140, 4340).

• General-purpose job shop work where the same insert must handle various depths of cut.

• Fits all standard MTJNR / PTJNR / WTJNR style external tool holders and boring bars.
